Transparent LED Film
A new form of display technology is Transparent LED film. Invisible PCB or Mesh technology comes with up to 95% transparency and at the same time offers full display properties. TLED The film turns an ordinary glass facade, a shop window, into a unique video show.
Invisible PCB & Mesh Technology
Thanks to the PCB & Mesh advanced technology, the transparency of the film is up to 95%. At first glance, you do not see any wires between the LED modules. When the LED film is off, the transparency is almost perfect.
Slim & Soft for Creative Design
The thickness of the LED film is only 1.2 mm, the maximum sheet size is 1000 x 240 mm, weight 0.3 kg.
Fine material is very flexible, can be applied to curved surfaces, round surfaces
Easy Installation & Anti-UV
Paste on the glass without frames or other gaps. Clear viewing area up to a width of 2000 mm. You can freely cut, fold into LED film in various shapes and in huge areas without seeing the frames behind the video content
Flexible during installation

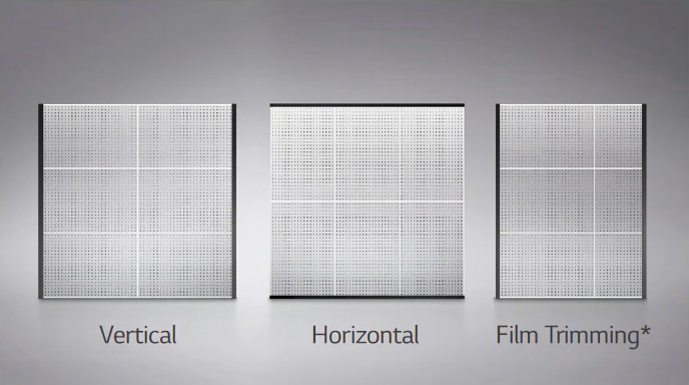

The size and layout of the film can be customized to fit in to the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.
Specification
| Type | P4, P8, P10, P11, P20, P30 Transparent LED Film |
| Panel Type | PCB & Mesh LED Film |
| Active Area | 1000 x 240mm |
| Surface | Adhesive / Non Adhesive |
| Display Colors | RGB |
| Viewing Angle | 160° |
| Signal Interface | HDMI |
| Input Voltage | AC 110-220V |
Usage
| Shopping window |
| Advertising |
| Trade fairs & presentation |
| Facade buildings |
